Lumon Glazing

The ultimate solution for a balcony or patio

Lumon Glazing is the ultimate solution for a balcony or patio. Our innovative glass panel system offers the unique ability to fully retract, giving you the freedom to fully or partially open the outdoor space as desired. With no frames to obstruct the balcony or patio, you can enjoy unimpeded panoramic views of the surrounding scenery. The frameless design also makes for easy use and maintenance, ensuring that you can fully enjoy your balcony or patio. Made from high-quality materials, Lumon Glazing combines elegant design with practicality, providing you with an exceptional outdoor living experience.

The Lumon glazing system consists of two horizontal aluminum profiles located at the top of the ceiling and at the bottom on a parapet or on the floor, depending on which solution is most suitable for your project. The closed glazing provides excellent protection for the facade and the concrete structures and thus extends future renovation intervals.

Designed for extreme weather
Technically and visually cohesive entity
Adds living space to your home
Improves energy efficiency
Long lifespan design
Stylish vertical metal handles
Effective sound insulation
Integrated blinds system
Guaranteed quality
Two different kind of versions of the Lumon Glazing – retractable and sliding

Retractable Lumon Glazing is perfect if you want a fully-opening solution

Lumon’s retractable glazing provides homeowners with many advantages, as well as the added flexibility of being able to open and close the glass balcony or patio panels as desired.

Unlike typical frameless glass sliding doors, our frameless retractable glazing opens fully and folds tidily against an interior wall. Because they fold to the inside, our glass panes are easy to use and maintain. They can also be secured to prevent them from moving in the wind.

With retractable Lumon Glazing, we are able to provide glazings for all kind of projects around the world.

Retractable Lumon Glazing has multiple features

The panes of the glazings are 6, 8, 10 or even 12mm toughened glass.
The Lumon glazing systems consist of uninsulated aluminium profiles and single glass panes.
Ventilation on the balcony is provided through the 2-3 mm gaps between the panes.
It can be fitted with 3 types of telescopic profiles and has two kinds of lower profiles. The advantage of the telescopic profile is that it absorbs building shrinkage or other opening changes and allows the system to be adjusted.
Upper bearing system which makes the glazing works perfectly.
Glazing can be installed on top of a railing or as a floor-by-floor high glazing.
Toughened glass panes are attached to the profiles through separate mechanisms, allowing the panes to slide and turn.
Lower profile can be a low threshold or even embedded totally.
Lumon glazings reduce traffic noise by 8-16 dB. The results vary due to the thickness of the panes and the environmental conditions. A decrease of 10 dB corresponds to half as much audible noise.
When the height of the building, the location or the glazing height set special requirements, the components are replaced with stronger options. While glass may suggest something delicate, our balcony glass is designed and tested to stand up to strong winds and harsh conditions, while still looking sleek and elegant.

see technical guide for Lumon glazing retractable

Sliding Lumon Glazing scales according to the space, conditions and customer needs

There is also a need for glazing products with sliding glass panes. Sliding Lumon Glazing has been developed for this purpose. Balcony or patio glazing systems with sliding glasses scale according to the space, demands of the conditions, and customer needs. The glass panes can be opened both inside and outside.

Sliding glazing can be installed on top of a railing or as a room-high glazing.
Toughened glass panes are attached to the profiles through separate mechanisms, allowing the panes to slide.
The frameless glazing system has glasses that slide interleadingly and are lower bearing.
The glazing can be fitted with aluminium vertical frames or vertical seals.
The system consists of an upper and a lower aluminium profile which are mounted to the balcony ceiling and on the handrail or floor. Toughened glass panes, with glass beads on the bottom, are mounted between the upper and lower profiles.
The glass panes slide open with the help of roller bearing components that are fixed to each glazing bead.
Vertical and lateral silicone and rubber sealing profiles are used to cover gaps and openings between the glazing system and the surrounding structures to ensure sufficient water, wind and sound proofing.

See technical guide for Lumon Glazing Sliding

We have now had our glass enclosure installed for several months. We’ve had some strong winds, measured up to 100 km/h. On windy days, we keep the glass windows shut and we can still be on the balcony, as if it was a calm day. That is wonderful. Sure, we can hear the wind blowing, but we are outside in comfort. We love our glass enclosures.
Bengt L.,Toronto, Canada

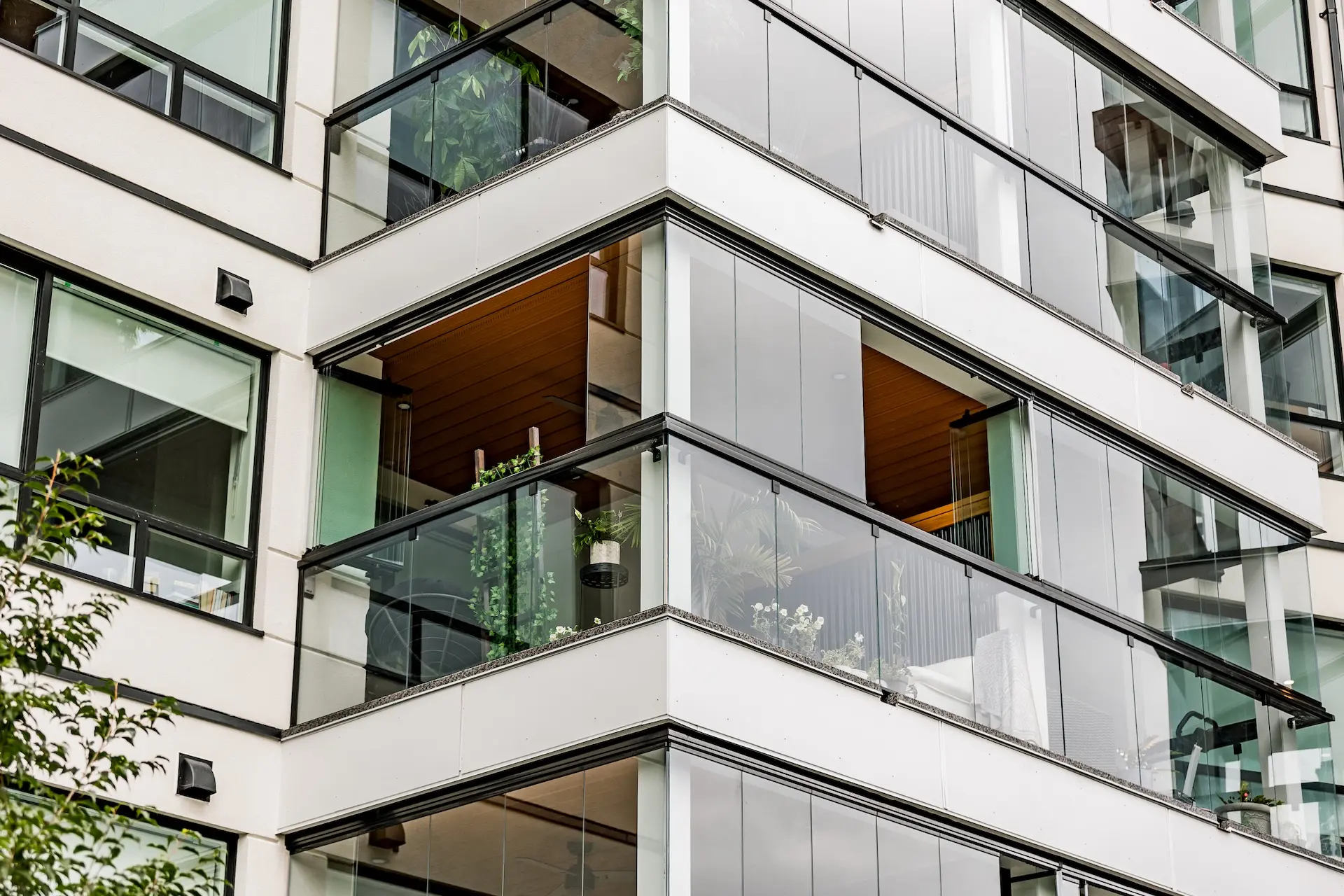

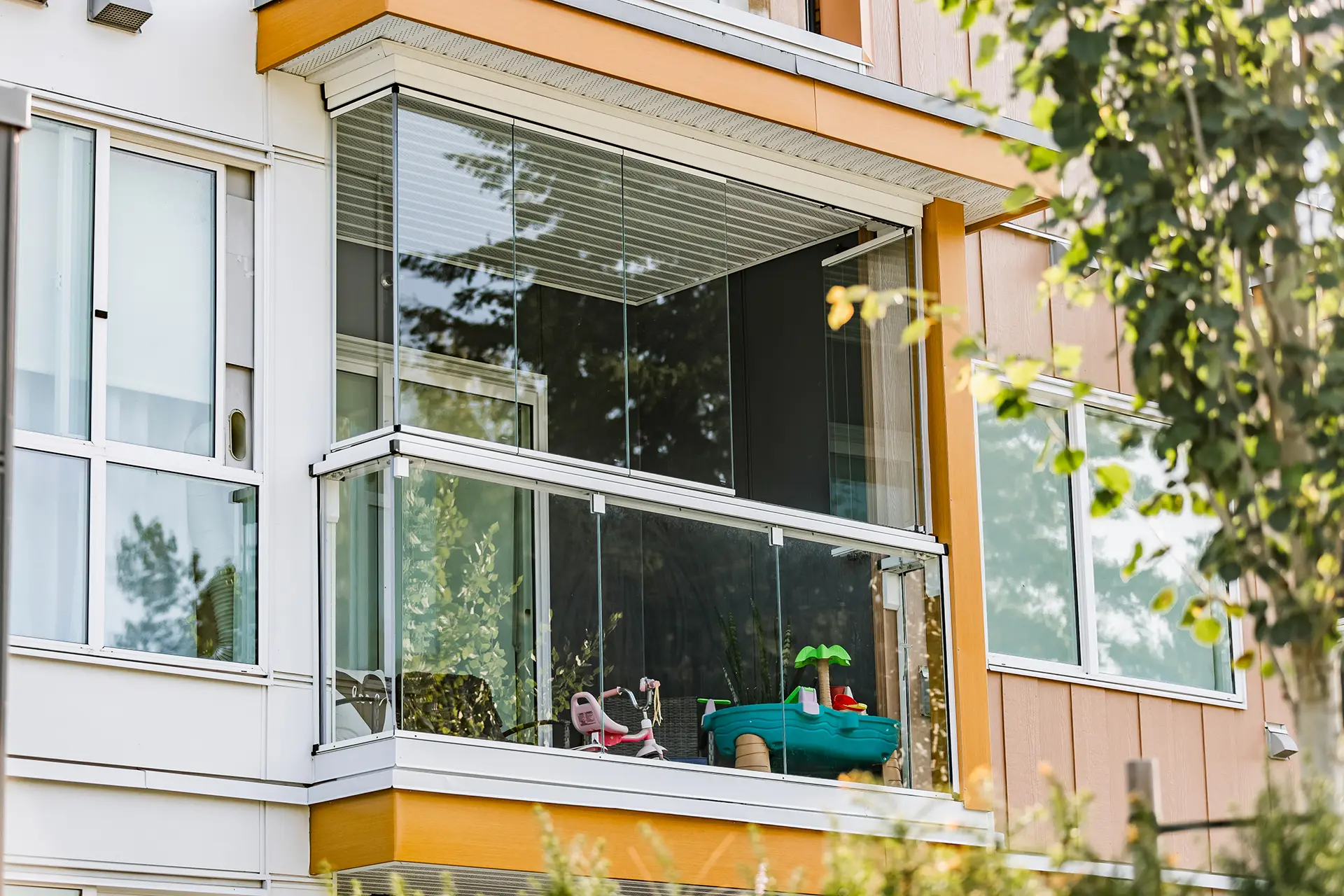

The most common applications of Lumon Glazing: Floor-to-roof or railing-to-roof

Although we can customise our Lumon balcony glass system for almost any use, the most common applications are railing-to-roof and floor-to-roof balcony glass.

Floor-to-roof balcony glass sits inside the balcony railing, providing another simple and elegant solution.

Railing-to-roof balcony glass is designed to work with existing balcony rails, extending from the top of the railing to the ceiling. Alternatively, we can replace your existing balcony railing with a Lumon glass balcony railing, available with or without vertical posts. Lumon railings and Lumon balcony glass look phenomenal together and create little visual obstruction.

Custom-made for each balcony or patio

All options for balcony glass are beautiful and our design consultants will use their expertise to provide guidance as to which system would best suit your needs and your project. Lumon glazings are custom made for each balcony or patio. All materials and components related to the basic product (upper and lower profiles and equipped glazing panes) are supplied in one delivery patch directly to the construction site.

Regardless of which option you choose, you’ll be amazed at how light it feels and how easily it opens and closes.

Design objects for Lumon Glazing products

The Lumon Glazing system is equipped with a sophisticated and intricate design that ensures it is seamlessly integrated with balcony structures. To facilitate the design process, you can access Lumon’s design library on ProdLib or BIMObject to download our products’ REVIT, ArchiCAD, and AutoCAD objects.
Moreover, you can visit the Lumon Planning Guide to obtain essential technical information such as installation instructions, maintenance guidelines, and technical specifications that will help ensure the success of your project.

Certified for Quality and Safety by CCMC

Since 2012, Lumon’s glazing systems have been rigorously tested and approved by the Canadian Construction Materials Centre (CCMC), meeting the high standards of the National Building Code of Canada. Our systems are engineered to withstand critical conditions, including wind loads, guard and handrail safety, and glass integrity. Tested in a recognized laboratory in Mississauga, Lumon’s glazing solutions provide reliable performance and durability, ensuring that your balcony or sunroom enclosure not only enhances your space but also meets stringent safety requirements.
